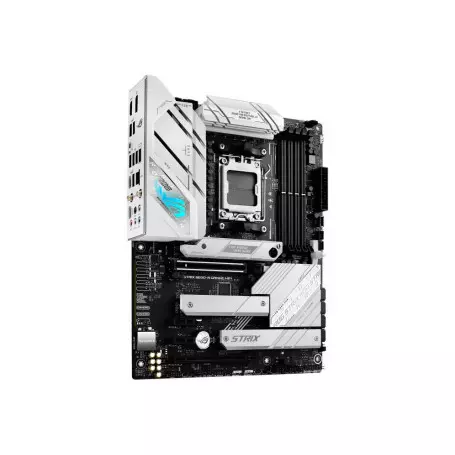

Carte Mère Asus ROG STRIX B650-A GAMING WiFi ATX DDR5 Socket AM5

Marque

GAMING

Référence fabricant (SKU)

90MB1BP0-M0EAY0

Modèle

ROG STRIX B650-A

Compatibilité CPU

AMD Ryzen™ 7000 Series

Socket

AM5

Chipset

AMD B650

Type

DDR5

Fréquences mémoire

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC

Technologie Dual Channel

Oui

Capacité maximale par slot

48 Go

Capacité maximale

192 Go

RAM ECC prise en charge

Oui

Chipset graphique embarqué

N/A

Compatible avec le chipset graphique du CPU

N/A

Chipset audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Canaux

8

Ethernet RJ45

1 x Intel® 2.5Gb Ethernet

WiFi

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Bluetooth

Bluetooth v5.2

Ports SATA

4 x SATA 6Gb/s ports

Ports M.2

3 x M.2 slots (Key M)

Compatibilité RAID

Oui, mode 0, 1, 10

PCI-Ex 16x

1 x PCIe 4.0 x16 slot

PCI-Ex 8x

0

PCI-Ex 4x

1 x PCIe 4.0 x16 slot

PCI-Ex 1x

2 x PCIe 4.0/3.0 x1 slots

Panneau arrière

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Ports USB

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Connecteurs supplémentaires

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™header
1 x COM_DEBUGheader

Dimensions

305 x 244 mm

Couleur

Blanc

LED

N/A

Format

ATX

Garantie constructeur

36 mois
