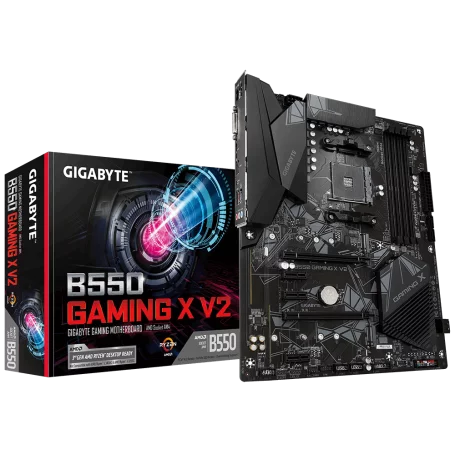

Carte Mère Gigabyte B550 GAMING X V2 ATX AM4 DDR4 USB3.2 M.2

Carte Mère Gigabyte B550 GAMING X V2 ATX AM4 DDR4 USB3.2 M.2 CMGB550GAMING-X-V2 - 1
zoom_out_map
chevron_left chevron_right
  • Compatible avec Processeurs AMD Ryzen™ 3e Gen (incluant ceux avec Processeur Graphique Radeon™)
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Alimentation Numérique Twin 10+3 Phases avec MOSFETs à Faible RDS(on)
  • Port PCIe 4.0 x16 Ultra Durable™
  • Connecteurs Dual NVMe PCIe 4.0/3.0 x4 M.2 Ultra Rapides
  • Réseau GIGABYTE 8118 Gaming avec Gestion de la Bande Passante
  • USB 3.2 Gen1 Type-C™ Frontal et HDMI & DVI-D pour Multi-écran
  • Condensateurs Audio Haut de Gamme et Technologie Audio Noise Guard pour une Qualité Audio Supérieure
  • RGB FUSION 2.0 compatible LED Adressables & Rubans LED RGB
  • Smart Fan 5 Incluants Multiples Sondes de Température, Connecteurs Hybrides de Ventilateurs avec FAN STOP
  • Résistances Anti-Souffre
119,90 €
En Stock
Achetez maintenant et payez à votre rythme
1 Au moment du paiement, Choisissez Younited Pay 2 Choisissez la durée de remboursement 3 Connectez simplement et de manière sécurisée votre compte bancaire 4 Recevez une réponse en quelques secondes

Commencez à payer dans 30 jours seulement !
 mois

Votre achat pour     / mois

Mensualité minimum 10,00 € / mois

Montant total du crédit

 €

+ Intérêts et frais (hors assurance facultative)

 €

= Montant total dû par l'emprunteur  €
TAEG fixe
(hors assurance facultative)
%
Taux débiteur fixe %

Un crédit vous engage et doit être remboursé. Vérifiez vos capacités de remboursement avant de vous engager.

Fermer

Processeur

  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • (Please refer "CPU Support List" for more information.)

Chipset

  • AMD B550

Mémoire

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3rd Gen AMD Ryzen™ Processors:

  • Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)

Carte Graphique Intégrée

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB

Audio

  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Réseau

  • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Port d'expansion

1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  • 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

  • Supporting PCIe 3.0 x2 mode

3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:

  • Supporting PCIe 3.0 x1 mode

Interface de Stockage

1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  • 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  • Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

  • Support for RAID 0, RAID 1, and RAID 10

USB

Chipset:

  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 3 x USB 3.2 Gen 1 ports on the back panel

Chipset:

  • 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Connecteurs d'entrées/sorties internes

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

Connecteur du Panneau Arrière

  • 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 3 x audio jacks

Contrôleur d'Entrée/Sortie

  • iTE® I/O Controller Chip

Monitorage Matériel

  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Fonctionnalités Exclusives

  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install

Logiciels Fournis

  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Système d'Exploitation
  • Support for Windows 10 64-bit

Dimensions

  • ATX Form Factor; 30.5cm x 24.4cm

Remarque

  • Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  • Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Fiche technique
Référence Fabricant
B550 GAMING X V2
Format Carte Mère
ATX
Chipset Carte Mère
AMD B550
Socket CPU
AMD AM4
Fréquence Mémoire supportée
3200 Mhz
Type de Mémoire
DDR4 (DIMM 288 pins)
Dimensions (LxPxH)
30.5 x 24.4 cm
Garantie Constructeur (Mois)
36
