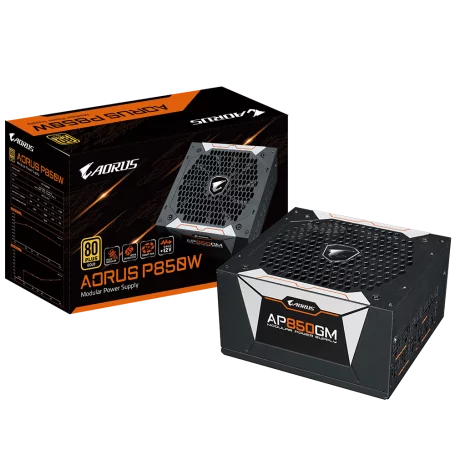

Alimentation AORUS GP-AP850GM 80+ Gold Full Modulaire 850 Watts

Alimentation AORUS GP-AP850GM 80+ Gold Full Modulaire 850 Watts

• Model : GP-AP850GM
  Type : Intel Form Factor ATX 12V v2.31
• PFC : Active PFC (>0.9 typical)
• Input Voltage : 100-240 Vac (full range)
• Input Current : 10A
• Input Frequency : 47-63 Hz
• Output Capacity : 850W
• Dimension : 150 x 160 x 86mm
• Fan Type : 135mm Double ball bearing fan
• 80 PLUS : Gold
• Efficiency : 90% at typical load
• MTBF : >100,000 hours
• Protection : OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Singal : 100ms ~ 150ms
• Hold Up Time : > 16m sec at full load (115V)
• Cable Type : Flat, All black
• Connectors
  ATX/MB 20+4 Pin x 1 : 650mm
  CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
  PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
  SATA x6 + 4 Pin Peripheral x2 :
  550mm+100mm+100mm+100mm*1
  450mm+100mm+100mm+100mm *1
  4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
  4 Pin Floppy x 1 : 100mm
