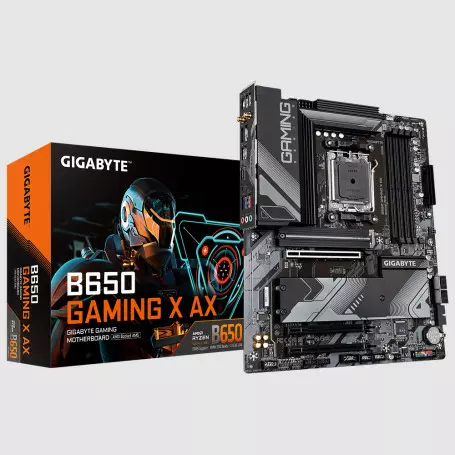

Carte Mère Gigabyte B650 GAMING X AX ATX AM5 DDR5 USB3.2 M.2 WIFI (B650 GAMING X AX)
DESCRIPTION DÉTAILLÉE
INFORMATIONS GÉNÉRALES | | | Marque | | Gigabyte | Référence fabricant (Sku) | | B650 GAMING X AX | Modèle | | B650 GAMING X AX | PROCESSEUR | | Compatibilité CPU | | AMD Ryzen™ 7000 Series Processors | Socket | | AMD AM5 | CHIPSET | | Chipset | | AMD B650 | MÉMOIRE | | Type | | DDR5 | Fréquence Mémoire | | Jusqu'à 6400 MHz | Technologie Dual Channel | | Oui | Capacité maximale par slot | | 32 Go | Capacité maximale | | 128 Go | RAM ECC prise en charge | | N/A | CHIPSET GRAPHIQUE EMBARQUÉ | | Chipset graphique intégré | | 1 x DisplayPort, supportant jusqu'à une résolution max de 3840x2160@144 Hz, 1 x HDMI port, supportant jusqu'à une résolution max de 4096x2160@60 Hz | Mémoire partagée | | N/A | AUDIO | | Chipset Audio | | Realtek® Audio CODEC | Canaux | | 2/4/5.1/7.1-channel | RÉSEAU | | Ethernet RJ45 | | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | WiFi | | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) | Bluetooth | | BLUETOOTH 5.3 & 5.2 | STOCKAGE | | Ports SATA | | 4 x SATA 6Gb/s connectors | Ports M.2 | | 3 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) | Compatibilité RAID | | Oui, mode 0, 1, 10 | SLOT D'EXTENSION | | PCI-E 16x | | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | PCI-E 8x | | 0 | PCI-E 4x | | 0 | PCI-E 1x | | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | CONNECTIQUES | | Panneau arrière | | 2 x SMA antenna connectors (2T2R) 1 x Q-Flash Plus button 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
| Ports USB | | 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports | Connecteurs supplémentaires | | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
| CARACTÉRISTIQUES PHYSIQUES | | Dimensions (L x l x H) | | 305 x 244 mm | Couleurs | | Noir | LED | | N/A | Format | | ATX | GARANTIE | | Garantie constructeur | | 36 mois |
|
